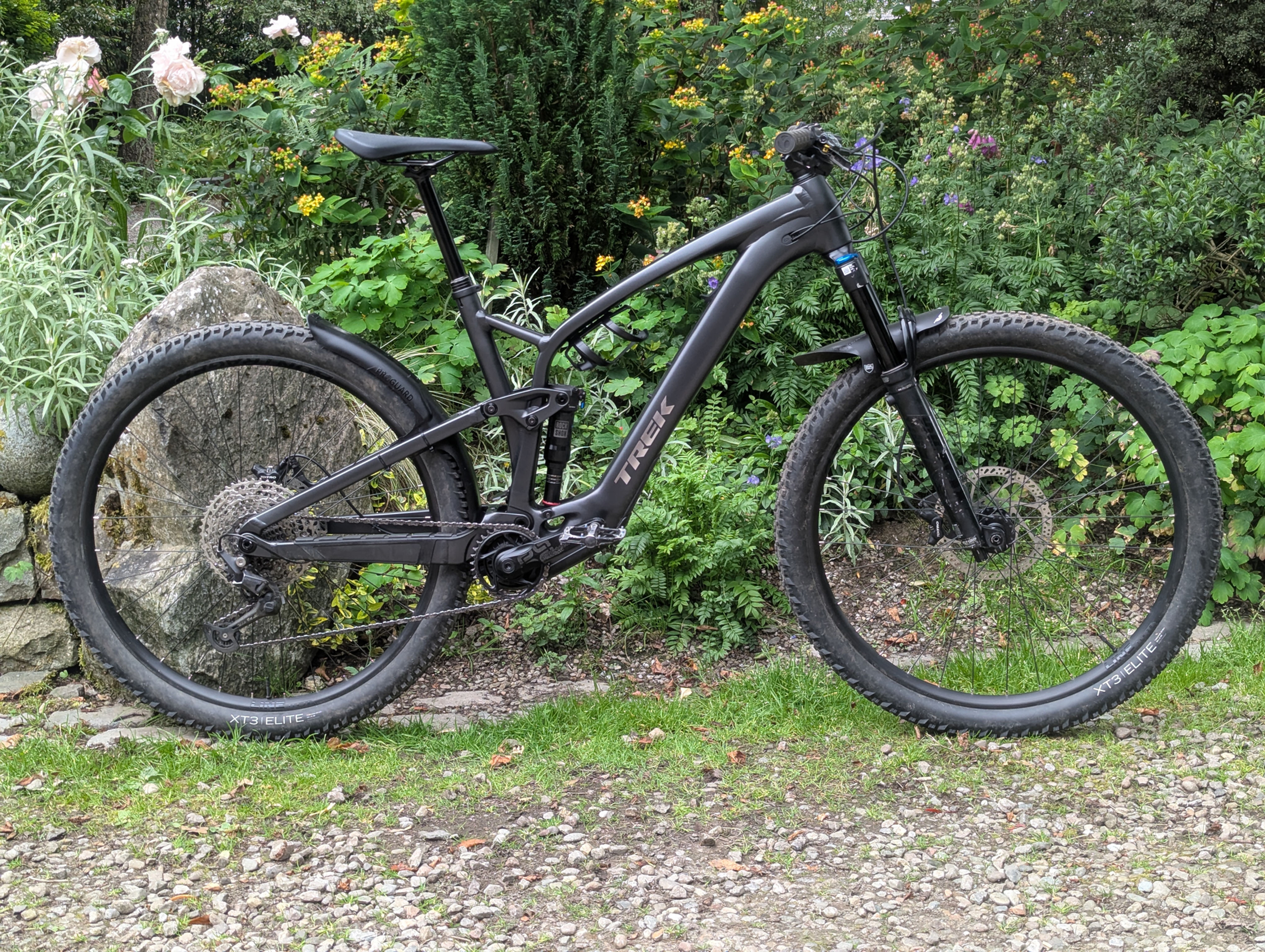

The Fuel EXe 5 is an aluminium electric mountain bike that brings all the tech of its carbon counterpart into a pocket-friendly package. It boasts the same tiny-but-mighty drive system that quietly disappears under you, plus a sleek display and remote. But what really makes this bike excel is its true trail bike feel that handles just like a traditional mountain bike, just with a little extra power.

Frame
Alpha Platinum Aluminium, removable battery, internal routing, alloy rocker link, 34.9 mm seat tube, upper chain guide mount, 55 mm chain line, Mino Link, ABP, Boost148, UDH, 140 mm travel
Fork
Fox 36 Performance 150 mm travel
Shock
Rockshox Deluxe Select +
Max compatible fork travel
160 mm

Hub front
Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Hub rear
Bontrager alloy, loose bearing, alloy axle, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
Skewer rear
Bontrager Switch thru-axle, removable lever
Rim
Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve
Tyre
Bontrager XT3 Elite, wire bead, 60 tpi, 29 x 2.40"
Tyre part
Bontrager TLR sealant, 180 ml/6 oz
Rim strip
Bontrager TLR
Max tyre size
Frame: 29x2.50", Fork: See manufacturer

Battery
TQ 360Wh
Charger
TQ 4A charger
Computer
TQ LED display with Bluetooth & ANT+ connectivity
Motor
TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power

Shifter
Shimano Deore M6100, 12-speed
Rear derailleur
Shimano Deore M6100, long cage
Crank
E*thirteen E*spec Plus, 165 mm length
Chainring
E*thirteen E*spec, 32T alloy ring, 55 mm chainline
Cassette
Shimano Deore M6100, 10-51, 12-speed
Chain
Shimano Deore M6100, 12-speed
Max. chainring size
1x: 34T, min 30T

Saddle
Bontrager Arvada, steel rails, 138 mm width
*Seatpost
Size: S
TranzX JD-YSI-22PLQ, 100 mm travel, internal routing, 34.9 mm, 346 mm length
Size: M
TranzX JD-YSI-22PLQ, 150 mm travel, internal routing, 34.9 mm, 454 mm length
Size: L, XL
TranzX JD-YSI-22PLQ, 170 mm travel, internal routing, 34.9 mm, 497 mm length
Handlebar
Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips
Bontrager XR Trail Comp, nylon lock-on
Stem
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length
Brake
Tektro HD-M745 4-piston hydraulic disc
Brake rotor
Tektro, 6-bolt, 203 mm
Rotor size
Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer

Weight
M - 20.98 kg / 46.26 lbs (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
